Remove Lock Code in Nokia Phone - factory reset with forgotten security code
18K views
May 26, 2024
Read more: http://www.hardreset.info/devices/nokia/nokia-5230/#remove-lock-code If you have forgotten the security password (also known as a lock code) for your device and there is no other way to perform the hard reset you should try uploading a new firmware by performing the flash operation on your cell phone. That way you will restore the default password but also lose all data on your device and bring all settings to the factory state. In the following tutorial we present step by step how to perform such an operation. Please be aware of the consequences and risks that may be result from this process
View Video Transcript
0:00
Hi guys, in this tutorial I'm gonna show you how to remove the log code from Nokia devices
0:11

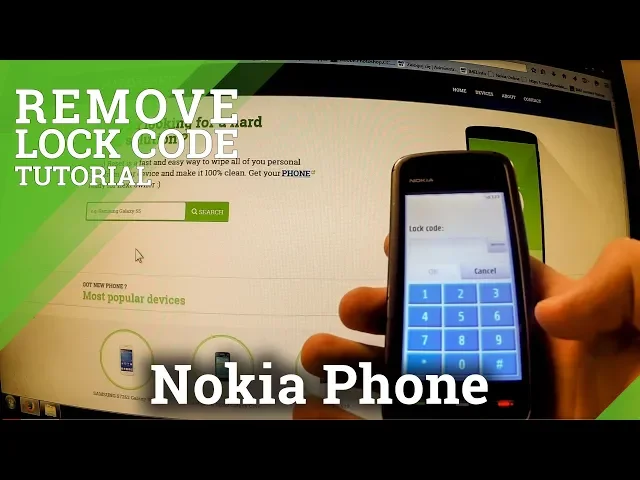

Here I have the Nokia 5230 with the unknown log code. So if I want to perform the hard reset operation by typing in the following code
0:25
I'm gonna choose yes in this step and now I'm asked to input the proper log code
0:31
The standard one which in my case is 12345 doesn't work here
0:36
I've got the information about code error. So the only way to erase all data and settings and also reset the log code is to perform
0:47
the flash operation. Flashing results in updating your device firmware and erasing all data and settings making your
0:58
phone as it just came from the manufacturer. At the very beginning I should download two applications Nokia Cursuit and Nokia Best
1:08
Then I should extract all files here. So I choose extract here and the second one Nokia Best extract here
1:21
Then I should install Nokia Cursuit by typing in Nokia Cursuit installation packet
1:29
I'm gonna choose it next, accept the terms in the license. Next I'm gonna choose complete installation and I should choose shortcut on desktop and
1:43
quick launch shortcut. Now I can start installing process. It can take about two minutes
1:59
I'm gonna choose yes in this particular case
2:17
Well done, installation is completed
2:40
I can choose finish and now I should read how to activate this application
2:45
I've got the information and instruction in text file and I know that I should input
2:51
the configuration file to the folder support tool for store which I can find right here
3:00
So I copy the configuration file and now I'm gonna find the exact folder, program files
3:11
Nokia Cursuit and here I have product support tool for store and I'm gonna choose paste
3:22
Here I select copy and change, continue. The application should be activated
3:33
So now I can connect my phone to my PC by using the micro USB cable
3:49
I'm gonna choose yes. Let me do it one more time
4:01
Here I should select PC suite or Ovi suite and now the phone should be connected
4:11
So I should back to Nokia Cursuit folder and open application launcher
4:19
Then bin folder and here I have application launcher in the upper part of the folder
4:28
I can click it and this is the interface of application launcher
4:37
In the main menu I've got option product support tool for store
4:43
I can click it
4:53
Here I have two options Nokia Cursuit external and Care Pro. I'm gonna choose external and without inputting username and password I can sign in
5:05
In the main menu I've got something like tools and option firmware download
5:14
And in this step I should input the product code. The product code depends on the phone which we are using
5:27
So I can read it in both ways. The first one is by removing the battery from the phone
5:38
And here I have the information about code phone. And the second method is by using the Best application
5:54
And I'm gonna show you how to read this information from Best application
6:01
I should connect phone again but before that I should turn it on. Excellent
6:28
Then I input the micro USB cable. And one more time I should choose OV-suit or PC-suit
6:43
Ok, the phone is ready. OV-suit, ok
6:53
And now I should find the Best application folder which should be in the folder when
7:03
we extract this file. So in my case it was Nokia folder here
7:12
And here is Nokia Best application. And start Best. Ok, in the upper menu I've got service tool
7:26
And here I have read info operation. And this is full specification of my phone
7:36
In the upper part of this I've got information about product code
7:46
Yes, there is. There is one and I can read it and write somewhere down
7:53
In my case it was 059B8T1. Ok, I can close for a second Best application
8:07
Come back to product support tool. And here I can input my code. 059B8T1
8:30
Afterwards I select check online. And the application found firmware named like that with this size
8:45
So I'm gonna choose download
8:55
Here is the strip with the completed process. So I can close it
9:04
Check where is my firmware. Open download location. And here I have all files with my software
9:16
They are all together in RM588 folder. I can copy that
9:28
And now I may close the product support tool and also application launcher
9:38
And come back to Best application. Here I ought to start Best
9:54
And I'm gonna read where is the path of this application
10:03
And in my case it is program files Nokia Phoenix products. So I should find this localization
10:14
Program files Nokia Phoenix products
10:24
And here I should paste my folder with software. I have already one so I'm gonna choose yes to change it
10:36
Copy and change. To all of them. Continue. OK. So here I should have the folder with my software named RM and with the number which depends
10:54
on device which we are using. Then I can come back to Nokia Best interface
11:02
And in the upper part I've got flashing. Here is the interface of flashing operation
11:14
And for now I haven't got signed the files to the flashing
11:22
So I can reload the path by changing it. But I'm gonna choose the same one like before
11:35
So it was program files Nokia
11:54
Let me do it one more time. OK. Here I have the Nokia folder
12:05
Phoenix as it was before. And of course products. I'm just gonna click on products and select OK
12:23
And now for a second I choose manual and unclick it. Now I should have files inputting in the brackets
12:41
Then I should click set normal, factory reset. And I can click change PC
12:57
OK everything is ready. Now I can start flash operation. The phone is rebooting
13:05
I've got the information about process right here. Here is the loading strip
13:18
My phone is activating
14:02
OK
14:15
Here I have the information about flashing done. The phone is rebooting
14:21
And now it's setting to normal mode. OK
14:55
I've got a start mode in my phone. I can select country
15:04
Let me select the random one. I'm gonna click OK. OK
15:19
OK phone is ready to use. I can disconnect my phone from my PC
15:24
And now I'm gonna show you that I can perform the hard reset operation with typing in the
15:37
standard log code. So let me open the dialer
15:50
And now I'm gonna input the reset code which is like that
15:59
0 and hash. OK I'm gonna choose yes
16:10
And now I'm asked to input the log code. I'm gonna choose 1, 2, 3, 4, 5
16:18
Like a standard one. And now I'm gonna click OK
16:30
OK and the hard reset operation has just been started. The phone will be reset in a moment
16:40
Phone is just rebooting. OK so our log code was reset. When some things go wrong with flashing operation and phone didn't want to start, you can click
16:57
dead mode and start the flash operation one more time and it should resolve your problem
17:04
Thank you for watching us. Bye-bye. Bye-bye. Bye-bye. Bye-bye. Bye-bye. Bye-bye. Bye-bye. Bye-bye. Bye-bye. Bye-bye. Bye-bye. Bye-bye. Bye-bye. Bye-bye. Bye-bye. Bye-bye. Bye-bye. Bye-bye. Bye-bye. Bye-bye. Bye-bye. Bye-bye. Bye-bye. Bye-bye. Bye-bye. Bye-bye. Bye-bye. Bye-bye. Bye-bye
